InfiniSolar V 4 TWIN

On-grid inverter with energy storage

  • Maximum PV input current 27A.
  • Dual outputs for smart load management.
  • Touchable button with 4.3" coloured LCD 2 Outputs Wi-Fi RGB LIGHTS.
  • Built-in WiFi for mobile monitoring (APP is available).
  • Programmable supply priority for PV, Battery or Grid.
  • User-adjustable charging current and voltage.
  • Programmable multiple operation modes: Grid-tie, o-grid and grid-tie with backup.
  • Reserved communication port for BMS.
  • Parallel operation up to 9 units.

InfiniSolar V 4 TWIN Hybrid Inverter Specification

MODELInoniSolar V 4 TWIN 6kw
PHASE1-phase in / 1-phase out
MAXIMUM PV INPUT POWER7000W
RATED OUTPUT POWER6000W
MAXIMUM CHARGING POWER6000W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage120VDC / 150 VDC
MPP Voltage Range120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current1 / 27A
GRID OUTPUT (AC)
Nominal Output Voltage220/230/240 VAC
Output Voltage Range184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current26A
Power Factor> 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)96%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range90 - 280 VAC or 170 - 280 VAC
Maximum AC Input Current40 A
PV INPUT (DC)
Maximum DC Voltage500 VDC
MPP Voltage Range120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current1 / 27 A
PV INPUT (DC)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage220/230/240 VAC
Output WaveformPure sinewave
Effciency (DC to AC)93%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage120VDC / 150 VDC
MPP Voltage Range120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current1 / 27A
GRID OUTPUT (AC)
Nominal Output Voltage220/230/240 VAC
Output Voltage Range184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current26A
AC INPUT
AC Start-up Voltage / Auto Restart Voltage120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range90 - 280 VAC or 170 - 280 VAC
Maximum AC Input Current40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage220/230/240 VAC
Efficiency (DC to AC)93%
BATTERY & CHARGER
Nominal DC Voltage48 VDC
Maximum Solar Charging Current120A
Maximum AC Charging Current120A
Maximum Charging Current120A
BATTERY & CHARGER
PHYSICAL
Dimension, D x W x H (mm)140 x 295 x 468
Net Weight (kgs)12
INTERFACE
Parallel FunctionYes, 9 units
Communication PortUSB/RS232/RS485/Wio/Dry-contact
ENVIRONMENT
Humidity0 ~ 90% RH (Non-condensing)
Operating Temperature-10 to 50ºC

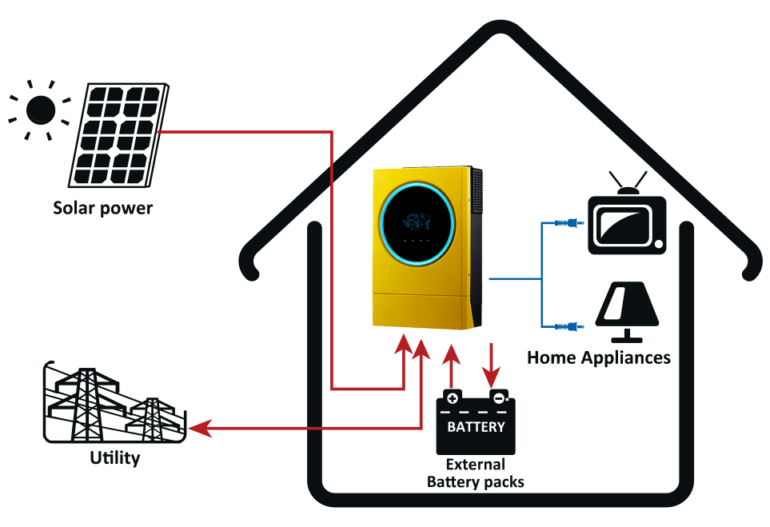

System Diagram
