iPower 5.12

Renergy Power is a leading manufacturer of high-quality lithium-ion and VRLA batteries, catering to the growing demand for efficient and sustainable energy storage solutions. Our batteries are designed for a wide range of applications, including renewable energy systems, and industrial equipment, for residential and commercial applications.
We are committed to innovation, reliability, and environmental sustainability.Renergy Power aims to provide durable, high-performance batteries that empower a greener and more connected world.

iPower 5.12

iPower 5.12 represents the pinnacle of technological innovation, utilizing the latest advancements to create a high-performance lithium-ion battery pack capable of meeting the most demanding power requirements of today’s applications. Its sleek and modern design looks fantastic and delivers exceptional performance. It’s easily integrated into a wide variety of devices and systems.

Features

Grade A LifePo4 Cell

Multiple Modes of Operation

Wall mounted

Built-In BMS

Product Details

  • Coloured LCD screen, Bluetooth &WIFI
  • LFP (Lithium iron phosphate) Grade A cells to ensure the highest safety and quality
  • Built in BMS for intelligent monitoring and management of the cell temperature, current, voltage, SoC, SoH
  • Compatible with wide range of inverter brands
  • RS485 & CAN Communication
  • Support parallel connection of up to 16 units
Technical Specifications
ItemsDescription
Rated Voltage51.2V
Rated Capacity100Ah
Rated Energy5.12 kWh
Output Voltage Range43.2V~58.4V
Charging Voltage57.6~58.4V
Cut-Off Voltage43.2V
Max Charging Current100A
Recommended Charging Current5OA
Max. Discharge Current100A
Efficiency＞98%
Dimensions L*W*H*(mm)650*384*150
Weight (kg)~48
Humidity5%~95% Relative Humidity
Charging Temperature0°C~55°C
Discharging Temperature-20°C~60°C
Storage Temperature-10°C~30°C
Cycle Life8000 50% DOD, 6000 times 80% DOD, 4000 100% DOD (0.2, 25°C)
Design Life＞10 Years
Operating ModeTouch Screen

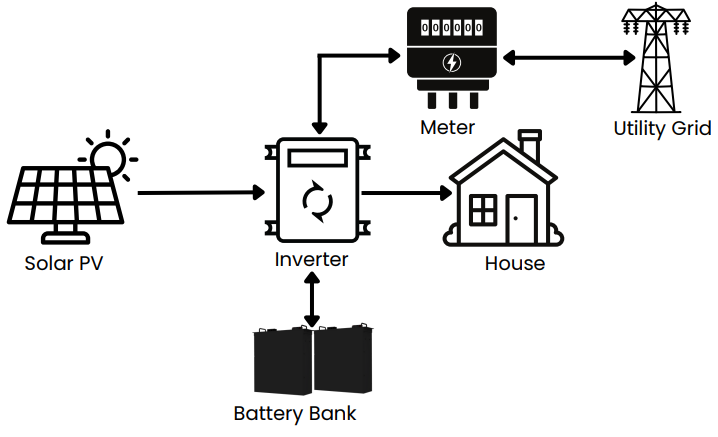

System Diagram
